Rim Joist & Band Joist Spray Foam in Kansas City, MO | Basement Rim Joists & Cantilevers

Basement rim joists and band joists are the thermal weak point of almost every Kansas City house. These are the exposed foundation edges that sit directly above the concrete, uninsulated and open to the crawl space or basement, and they leak more cold air than a poorly sealed attic. In winter, the temperature difference between your conditioned basement and the outside foundation creates a thermal highway that pulls heat straight down and out. In spring and fall, when Kansas City's humid air meets a cold concrete rim, condensation forms in the rim cavity, rotting wood and creating the conditions for eventual structural problems. Rim joist and band joist spray foam seals every air gap along the top of the foundation in a single pass, stops the cold air leak, and prevents moisture from settling into the rim bay. It is one of the fastest payback insulation jobs in the house, and it is the natural entry point for homeowners new to spray foam work.

Why Rim Joist Insulation Matters in Kansas City's Basement-First Housing Stock

Almost every home in Kansas City sits on a basement. The rolling limestone hills and the bluffs along the Missouri and Kansas rivers mean that basements are not optional, they are the foundation standard. That basement is conditioned in winter to keep pipes from freezing, and the rim joist is the first place that cold air from outside meets the warm basement air. The result is a continuous draft along the entire perimeter of the house, and in a two-story or three-story Kansas City shirtwaist, a cantilever, or a bonus room over a garage, that rim joist is responsible for pulling heat loss straight through the rim bay and into the foundation wall.

• Uninsulated rim joists lose more heat than a poorly sealed attic, because the temperature difference is constant all winter long.
• Moisture settles in the rim cavity during spring and fall, when the foundation is cold and the basement air is warm and humid.
• Closed cell spray foam fills every bay, every corner, and every penetration in a single application, stopping air leakage and blocking vapor drive.
• The job takes a few hours and requires no structural work, no removal of finished basement walls, and no interior demolition.

The rim joist is the one place in a Kansas City basement where spray foam delivers both air sealing and moisture control in a single, permanent fix.

Key info: Kansas City building code requires that rim joists be insulated to meet the energy standard for your address. The building department at your city (Kansas City, Independence, Lee's Summit, Raytown, or another of the metro jurisdictions) sets the R-value and the thermal barrier requirement. We help you navigate what applies at your address. For details, contact your local building official or call us at (816) 307-2678.

How We Seal and Insulate Rim Joists in Kansas City Basements

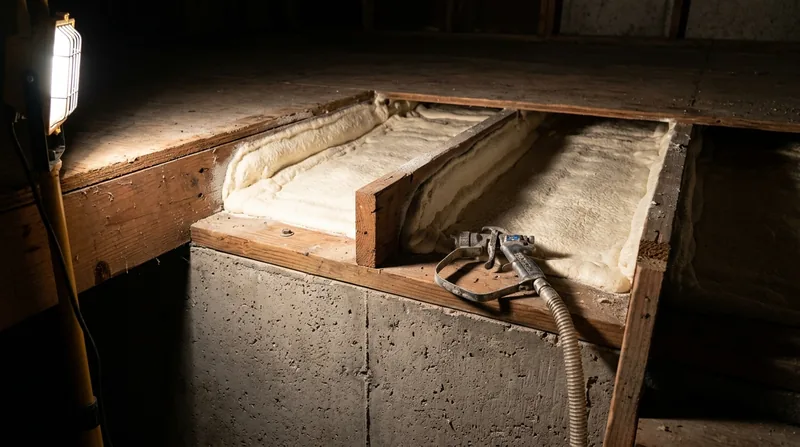

The rim joist runs along the top of the foundation wall, between the basement floor and the band board (the rim of the first floor framing). In older Kansas City homes (1920s-40s bungalows, Victorians, shirtwaists), the rim is often open to the crawl space or the basement and is wrapped in nothing but tar paper or old fiberglass that has settled flat. In newer homes (1980s onward), the rim bay may have some fiberglass, but it is rarely sealed, so air moves freely through it. Our process is simple: we inspect the rim bay for moisture, mold, or active leaks; we dry it if needed; and we spray closed cell spray foam to fill the entire depth of the rim joist in a single, continuous seal.

• We inspect the rim bay for moisture, standing water, or active foundation leaks before any foam is sprayed.
• We set up mechanical ventilation during the spray and cure to manage odor and VOCs until the foam is fully cured.
• We spray closed cell foam to the full depth of the rim joist (typically 1.5 to 2 inches), filling every bay and every corner.
• We allow a 24 to 48 hour re-entry window before the space is fully occupied, and we provide written guidance on that timeline.
• The finished rim joist is sealed, insulated, and ready to stop air leakage and condensation for the life of the house.

The job is complete in a single day, and the comfort improvement is immediate.

Local example: A 1950s brick ranch in Raytown with a 40-foot perimeter basement and a 2-foot cantilever over the garage had a rim joist that was open to the crawl space. The basement stayed cold all winter, and the rim bay was damp every spring. We sealed and insulated the entire rim in one day with closed cell foam. The basement temperature stabilized within 48 hours, and the spring dampness stopped. The same approach works for a 1920s shirtwaist in Hyde Park, a 1980s two-story in Lee's Summit, or a bonus room addition in Belton.

Rim Joist Spray Foam Methods and Options

Closed cell is the standard for rim joists because it provides both air sealing and moisture control in a single material. Open cell is not used on rim joists because the rim bay is subject to seasonal vapor drive and condensation, and open cell absorbs water.

Rim Joist and Band Joist Spray Foam Cost in Kansas City: What to Expect

A typical rim joist seal in Kansas City starts at $650 and moves up based on the linear footage of rim to be sealed, the depth of the rim cavity, and the complexity of the space. A standard basement with a 40-foot perimeter and a 1.5-foot-deep rim joist will fall in the lower to mid range. A larger basement, a two-story with a cantilever, or a bonus room addition will be higher. Access also matters: a finished basement where we need to work around stored items or in a tight space takes longer than an open, empty rim. The estimate is free, and we provide the R-value, thickness, and square footage in writing so you know exactly what you are getting.

• Linear footage of rim joist is the primary driver of cost, measured in feet along the foundation perimeter.
• Depth and width of the rim cavity determine how much foam is needed to fill it completely.
• Access and obstructions (stored items, finished walls, or tight spaces) add time and affect the final price.
• Existing insulation removal, if the old fiberglass is wet or moldy, is a separate line item but is often necessary for a good seal.

For a detailed breakdown and a firm estimate for your home in Kansas City, Independence, Lee's Summit, or another local area, visit our pricing page or call (816) 307-2678 for a free consultation.

Rim Joist and Band Joist Spray Foam Near Me: What Kansas City Homeowners Should Know When Hiring

Hiring a spray foam contractor for rim joist work is straightforward, but there are a few things to verify before you sign. First, check that the contractor is fully insured and can provide a certificate of insurance. Second, ask for a written estimate that includes the R-value, the thickness of the foam, and the square footage or board feet of material. Third, ask about the re-entry window and the ventilation plan during cure, because poor ventilation during spray is the number one cause of odor complaints. Fourth, ask about the thermal barrier requirement at your address, because some jurisdictions require a thermal barrier over the foam and others do not. Your local building department has the final say, and the contractor should know it and defer to it.

• Request a written estimate with R-value, thickness, and board footage before any work is scheduled.
• Ask for proof of insurance and verify that the policy covers spray foam installation and air sealing.
• Confirm the re-entry window and ask what ventilation will be running during the spray and cure.
• Check the local building code for thermal barrier and ignition barrier requirements at your address.
• Ask about references and verify that the contractor has done rim joist work in homes similar to yours.

We are fully insured, we provide written estimates with all specifications, and we follow the re-entry and ventilation protocols that the trade requires. If you have questions about what applies at your address, contact us or call (816) 307-2678 for a free estimate and a conversation about your specific situation.

Rim Joist & Band Joist Spray Foam in Kansas City: Pricing Guide

Indicative pricing, the exact cost depends on square footage, finish, and site access. Free personalized estimate within 24h at (816) 307-2678.
